LoRa GPS watch with Vitals Monitoring

LoRaWAN Compliant,(NB-IoT optional).Communication range500~1KM in dense urban, 1.5KM LoS
Build in GPS for outdoor positioning,and Bluetooth 5.0 for indoor positioning
Support heart rate, blood pressure, body temperature measurement and pedometer
With SOS button, supports SOS in emergency
Build in 450mah battery, battery life up to 7 days @15mins reporting cycle, 24hours@3 mins reporting cycle
IP65 waterproof design,weight just 50g

Description

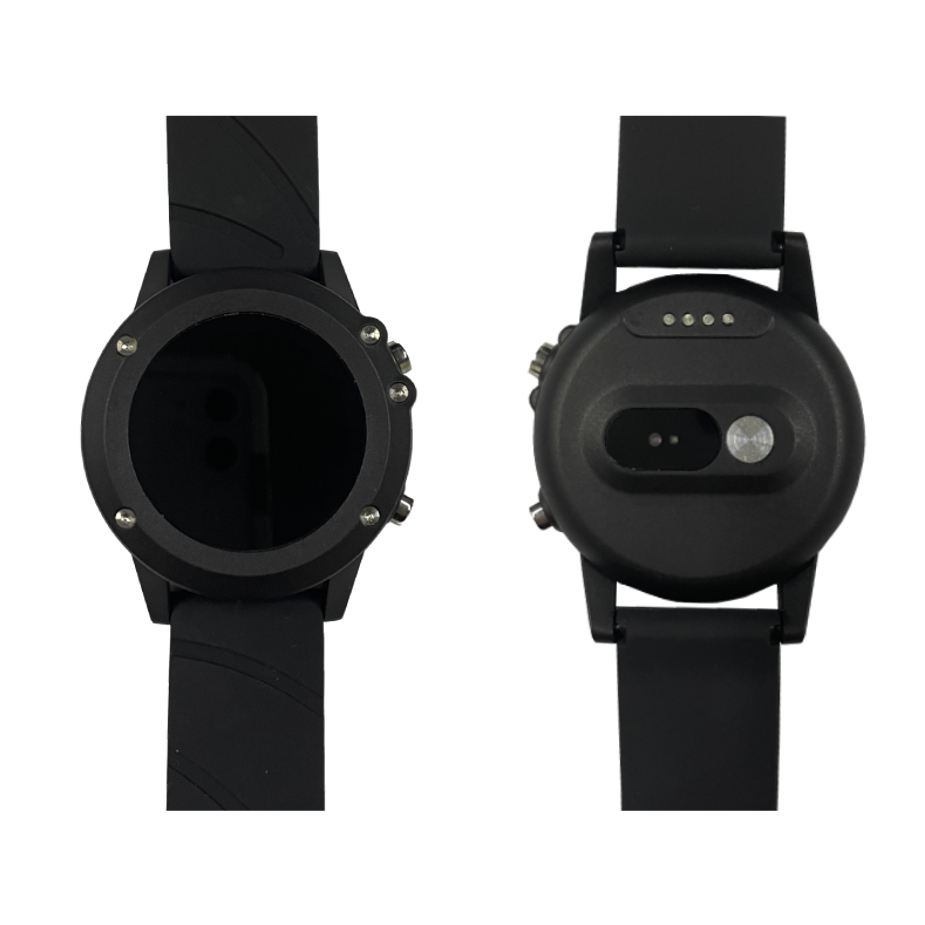

LW20B is a smartwatch based on LoRaWAN( NB-IoT optional). Built-in GNSS and Bluetooth can achieve indoor/outdoor real-time positioning and movement detection combined with motion sensors. Supports real-time collection of health data including heart rate, body temperature, blood pressure, and steps. The data will be automatically transmitted to the platform through the LoRaWAN Network. This IoT smartwatch can be widely used in connected worker solutions for Agriculture, Oil & Gas, mining, energy and utility industries, nursing homes, and hospitals

Specification

Parameters	Specification
Modem	ISM Band LoRa®
Frequency	AS923MHz，US915MHz, AU915Mhz, EU868MHz, IN865MHz
Communication range	500M in dense urban,1.5KM los
Positioning	Build in GNSS, Bluetooth and accelerometer, Positioning accuracy: 20 Meters CEP（Indoor positioning accuracy varies depending on Beacon density）
Bluetooth	Low power consumption Bluetooth for indoor positioning/ BLE5.0
Display	240*204 TFT Display
Rubber strap	22mm standard size (Replaceable)
Buttons	Function button A and B
Battery capacity	Polymer battery，450mAh， 3.8V
Charging	Magnetic charging cable
Operation time	7 days standby; more than 24 hours @ 3 mins reporting interval
Enclosure	IP65
Health data	Heart rate, Blood pressure, Body temperature, Steps
Alarm	SOS alarm
Operation temperature	-10~50℃
Operation humidity	10%～90%，Non-condensing
Dimensions	TYP. 485214.5mm (WLH)
Weight	50g
