Smart Rumen Bolus for Cow Monitoring

  • LoRaWAN Compliant
  • Communication range up to 500Meters
  • Battery life up to 5 years
  • Real time measuring the rumen temperature, movement and activity
  • IP68 Rugged Housing，food grade material, compact size 103.58*28mm
  • CE, FCC, ROHS certificated.

Description

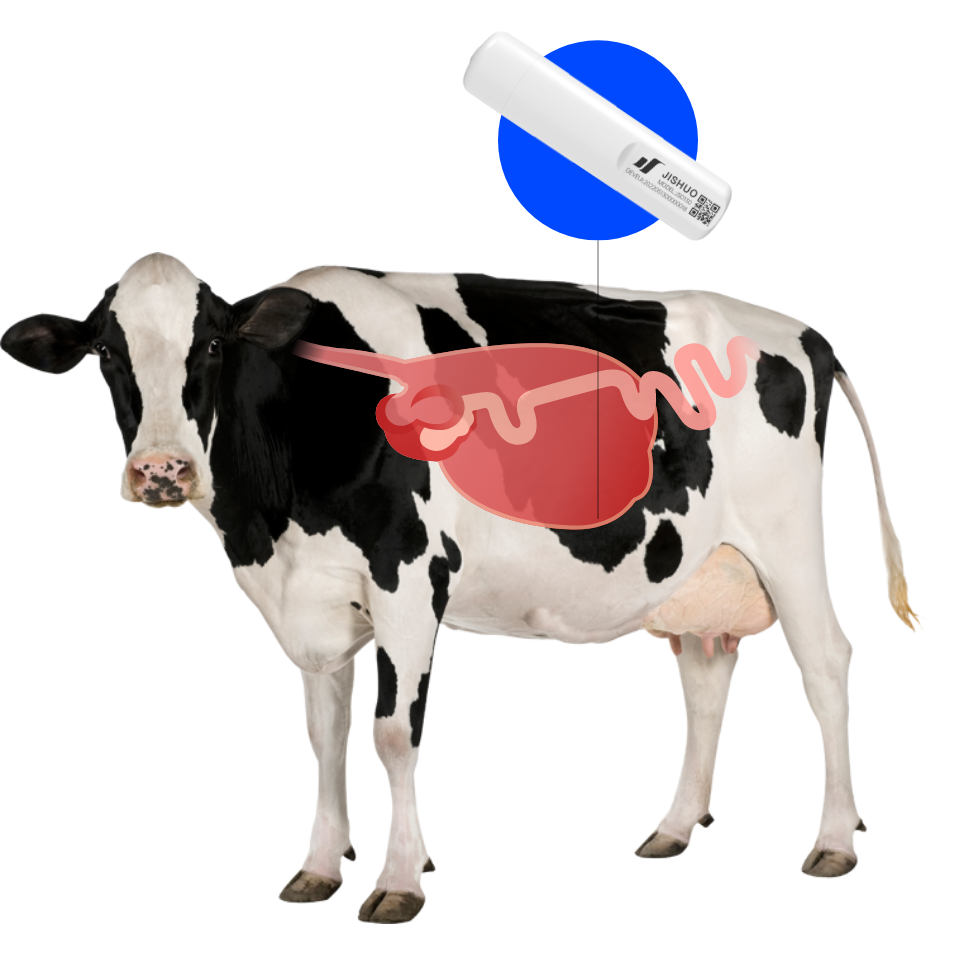

JS0130 is a LoRaWAN compliant rumen bolus designed to capture cattle activity, rumen temperature and movement. The material of the bolus is eco-friendly and causes no harm to the cattle. Once inserted into a cattle by a standard bolus gun, the bolus will remain in the rumen, All data is transmitted automatically first to the LoRa Base Station and then to a cloud-based platform, which allows farmers, vets, and scientists to process the information and deal with unexpected issues anytime, anywhere.
The earlier you detect health problems, the earlier you can react and reduce severe courses of diseases on your farm. Allow farmers to maximize the efficiency of farms.

Product Function

[object Module]

Heat Detection

[object Module]

Calving Alarm

[object Module]

Monitor Health Conditions

[object Module]

Water Intake

Specification

Parameters Specification
Modem LoRaWAN
Frequency CN470Mhz, EU868 Mhz, US915 Mhz, AS923 Mhz
Tx Power Type（SF9）：16dBm@470MHz；17dBm@868MHz；15dBm@915MHz；15dBm@923MHz
Communication range About 500 meters LoS (inserted into the rumen)
Temperature accuracy +/- 0.1°C
Accelerometer Monitoring the movement/activity of cow’s rumen
Reporting interval 12mins by default, configurable
Average power consumption ＜3.3mW
Battery 3V 4800mAh(JS0130)/2400mAh(JS0103)
Battery life 5 years (JS0130)/3 years(JS0103)
Casing IP68
Operation temperature 21~45°C
Storage Temperature -40°C~22°C
Demensions JS0130: 130.5*32mm/ JS0103: 103.5*28.5mm
Weight 120~200g
Certification RoHs Compliant, CE FCC certificated, GB4806.7 standard food grade casing.
