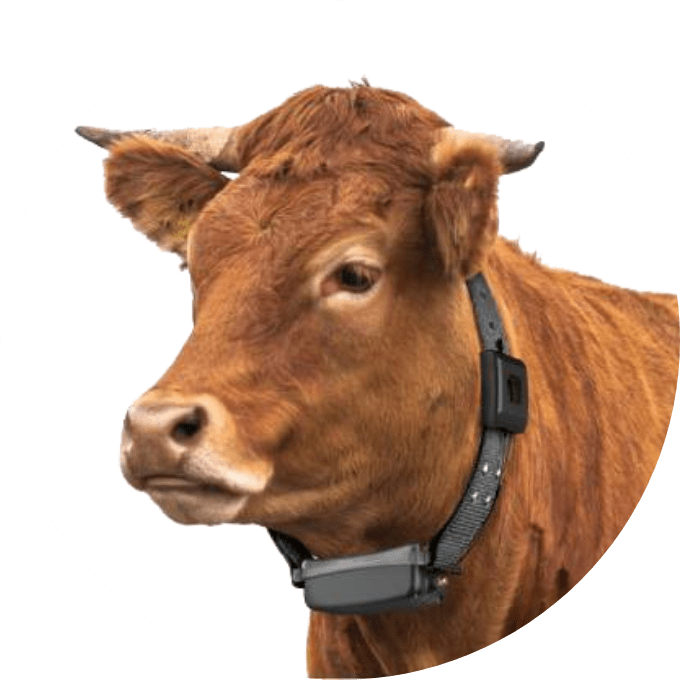

LoRaWAN GPS Cattle Collar

  • Communicate via LoRa，No SIM card required
  • Communication range 9~12KM LoS， 3~6KM in dense environment
  • Low power consumption: battery life as long as 3 years @ 1 location per hour，support lower power alert
  • IP67 rugged housing, 185*57*53mm compact size

Description

GA5201 cattle collar is a LoRa-based GPS tracking device with a Li-SOCl2 battery. The Collar’s GPS location data will uplink to the LoRaWAN gateway according to the schedule you choose, the collar is programmed wirelessly by the network server. You can control how often GPS location data are collected, and can also issue a remote command to change the GPS location data transmission interval.

Specification

Parameters Specification
Frequency Band 868~928MHz， Optional
Battery Specs 38000mah Li − SOCl2 battery, Non rechargeable
Operating Temperature -45~+75℃
Dimensions 185*57*53mm (Weight 360g)
Communication range 9～15KM LoS， 3～6KM in dense environment
Transmit Power +18dBm
Modulation LoRa Modulation Patented by Semtech
Protection Requirements IP67
Collar size 5 cm wide Neoprene Belting
GPS positioning solution Sensitive down to -148dB
GPS accuracy 10M～20M

Application

The LoRaWANTM Based cattle tracking system is capable of tracking and detecting anomalies in cattle behavior at any time. Ranchers are able in real-time locate their cattle to better manage the herd and reduce cattle theft.
[object Module]

Cattle

[object Module]

Camels

[object Module]

Horses
